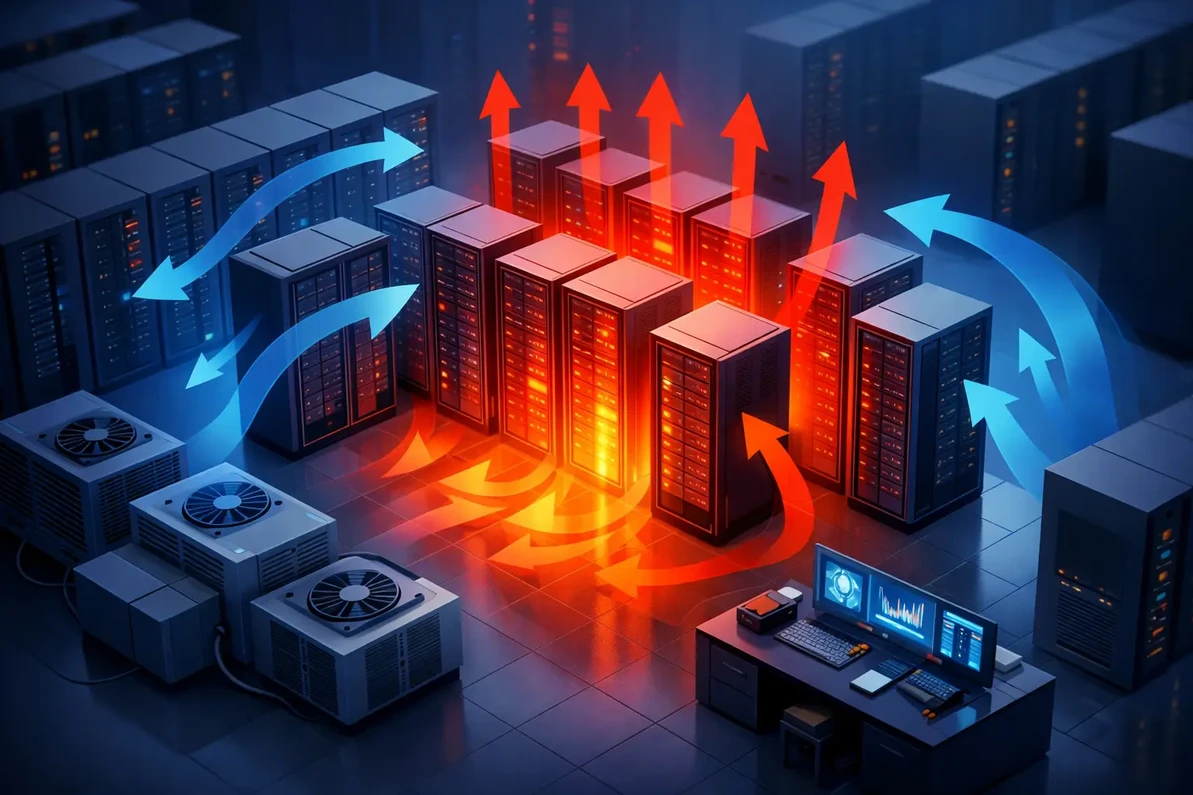

How to Prevent Data Center Hotspots Reliably

How to Prevent Data Center Hotspots Reliably

A rack can show acceptable average room temperature while its top servers pull air that is 15°F hotter than the setpoint. That difference is where throttling, fan-speed escalation, shortened component life, and avoidable downtime begin. To prevent data center hotspots, facility teams must manage the complete air path - not simply add more cooling capacity or install bigger exhaust fans.

For crypto mining containers, high-density AI racks, and conventional server rooms, heat follows the same engineering rules. Equipment creates a defined heat load, fans move a defined volume of air, and the building either supplies and removes that air correctly or allows it to recirculate. The practical work is identifying where the intended airflow path breaks down.

Why data center hotspots develop

A hotspot is an elevated equipment inlet temperature caused by an imbalance between heat generation, supply air delivery, and heat removal. It is not always located at the highest-wattage rack. A lower-density rack at the end of an aisle can run hotter than the rest of the floor if cool air is short-circuiting around it or hot discharge air is returning to its intake.

The most common issue is recirculation. Server exhaust rises or travels across an open area, then re-enters rack intakes before it reaches the return path. Bypass airflow creates the opposite problem: conditioned supply air takes the easiest route around, under, or over the IT load rather than through it. Both conditions waste fan energy and make room-level temperature readings misleading.

Static pressure is another frequent factor. A supply fan may have an impressive free-air CFM rating, but ductwork, louvers, filters, coils, sound attenuation, containment barriers, and discharge restrictions all consume pressure. If the selected fan cannot produce the required CFM at the actual static pressure, the far end of the room or container becomes heat stressed first.

Start with heat load and required airflow

Cooling design should begin with measured or expected electrical load. Nearly all electrical energy consumed by servers, ASIC miners, network switches, and power equipment becomes heat in the space. A 1 MW mining installation is effectively generating about 3.41 million BTU per hour of heat that must be moved or rejected.

For air-cooled equipment, a useful planning relationship is:

CFM = BTU per hour ÷ (1.08 × allowable temperature rise)

If a 100 kW room produces approximately 341,200 BTU per hour and the design permits a 20°F rise from supply to return, the calculated airflow is roughly 15,800 CFM. That is a starting point, not a final fan selection. The final design must account for elevation, air density, motor heat, filter loading, duct losses, operating redundancy, outside-air conditions, and the actual airflow curve of each piece of equipment.

A larger temperature rise reduces required CFM, but it also raises exhaust and equipment inlet temperatures if airflow distribution is poor. There is no universal best delta-T. The acceptable range depends on the server or miner manufacturer inlet-temperature limits, local climate, cooling method, and tolerance for performance derating.

Measure inlet temperatures, not just room temperature

Place sensors at the front, top, middle, and bottom of representative racks. The top-front inlet is often the first place a recirculation problem appears. Compare those readings with return-air temperature, supply temperature, and equipment fan speed.

For mining operations, monitor individual container zones or rows instead of relying on a single thermostat near an access door. A sensor in the wrong location can keep the controls satisfied while the most valuable hardware runs outside its preferred inlet range.

Build a deliberate supply-to-exhaust path

The goal is simple: every cubic foot of cooled supply air should pass through heat-producing equipment before it reaches the exhaust or return. Achieving that goal requires details that are often treated as minor installation items.

In a raised-floor data center, seal cable cutouts and unused floor openings, install blanking panels in open rack spaces, and place perforated tiles where rack airflow demand actually exists. Do not add perforated tiles simply because an aisle looks warm. Extra openings near the air handler can steal pressure and starve remote racks.

In slab-floor rooms and mining containers, establish clear cold-side intake and hot-side discharge zones. Orient equipment consistently. Use barriers, curtains, panels, or properly designed containment where needed to stop exhaust air from folding back into the intake side. Containment is highly effective, but it must not obstruct emergency access, fire protection, service clearances, or the equipment's required fan discharge area.

Avoid placing racks directly beneath poorly planned ceiling returns or next to large exhaust openings unless the airflow direction supports the rack layout. A powerful roof or wall exhaust fan can help remove heat, but it can also pull untreated outside air through every available opening and create uneven rack intake conditions. Exhaust capacity, make-up air capacity, and supply-air location must be engineered together.

Use containment and pressure control together

Hot-aisle containment generally captures server discharge and directs it to the return or exhaust path. Cold-aisle containment protects intake air from surrounding heat. Either approach can work well when it matches the room geometry and cooling architecture.

The trade-off is pressure. Over-exhausting a contained space can cause excessive negative pressure, uncontrolled infiltration, door problems, and reduced airflow through remote equipment. Under-exhausting allows heat to spill from the hot zone into the occupied room or cold aisle. Differential-pressure sensors, variable frequency drives, and staged fan control allow the system to respond to real demand instead of operating at a fixed speed regardless of load.

For direct-air crypto mining, negative-pressure designs are common because they move large volumes of air through the miners and out of the facility. They work when intake openings, filtration or light-trap restrictions, fan arrays, and discharge paths are sized as a complete system. They fail when exhaust fans are selected by free-air CFM alone or when intake area is too small to supply the fan bank without excessive velocity and pressure loss.

Select fans by the operating point

A fan cut sheet should be reviewed at the required CFM and total static pressure, not at its headline maximum airflow. Verify motor horsepower, voltage, phase, drive type, temperature rating, weather exposure, noise constraints, and service access. For high-temperature mining exhaust, also confirm that the fan, motor, bearings, belts if used, and controls are suitable for sustained discharge-air temperatures.

Variable-speed EC fans and VFD-controlled fan systems can reduce energy use during lighter loads and provide valuable control authority during peak conditions. However, variable speed is not a substitute for correct initial sizing. A fan that is undersized at design static pressure cannot be tuned into adequate performance.

Redundancy also deserves a clear decision. N+1 fan capacity may be justified for a revenue-critical mining site or a data center supporting essential operations. For smaller installations, a bypass plan, spare motor strategy, alarm response procedure, and rapid replacement access may provide a more sensible balance of capital cost and risk.

Commission the system under real load

A ventilation design is only proven after startup measurements. Record supply and discharge temperatures, rack inlet temperatures, differential pressure, fan amperage, fan speed, and airflow where practical. Then test the system at different IT loads and outdoor conditions.

Smoke visualization can reveal short-circuiting and recirculation quickly, but it should support instrument readings rather than replace them. Thermal imaging can identify warm rack faces, leaking containment seams, and hot spots at ceiling returns. Trending data over several days is especially useful because many failures appear only during afternoon ambient peaks, filter loading, or after automated fan controls change speed.

Review the installation after any significant change in rack density, miner model, containment layout, filter type, or exhaust configuration. Adding equipment without revisiting airflow is one of the fastest ways to recreate a solved hotspot problem.

When air cooling reaches its practical limit

Air cooling remains effective for many facilities, particularly where equipment density, climate, and building geometry support large-volume airflow. But at very high rack densities, the CFM, fan energy, noise, and floor area required for air cooling can become impractical. Direct-to-chip liquid cooling, rear-door heat exchangers, immersion cooling, or hybrid approaches may be the better engineering choice.

That decision should be based on total operating cost, water strategy, maintenance capability, heat-reuse opportunities, uptime requirements, and the actual density roadmap. It is not a reason to abandon airflow design. Even liquid-cooled environments still need ventilation for residual heat, power equipment, people, and building pressure control.

A hotspot is useful information: it identifies a mismatch between the load, the air path, and the equipment selected to move heat. Correcting that mismatch with measured CFM, real static-pressure data, controlled make-up air, and a verified exhaust path protects hardware before a temperature alarm becomes an operational event.
